th99
DATA TECHNOLOGY CORPORATION
Data bus: 8 bit ISA
Size:Half-length, full-height card.
Hard drives supported: Two MFM ST506/412 drives
DTC5160CR: Two RLL ST506/412 drives
Floppy drives supported:None

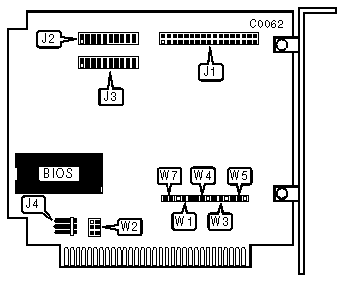

CONNECTIONS
FunctionLocation
34-pin control cable connector-hard driveJ1
20-pin data cable connector-drive 0J2
20-pin data cable connector-drive 1J3
5-pin connector-DC powerJ4
BIOS ADDRESS
AddressW2/jumper 1W2/jumper 2W2/jumper 3
»C800hopenopenclosed
 D000hclosedopenclosed
 D800hopenclosedclosed
 F400hclosedclosedclosed
 Disabledopenopenopen
USER CONFIGURABLE SETTINGS
FunctionLocationSetting
»BIOS size set for 8KW1pins 1 & 2 closed
 BIOS size set for 16KW1pins 2 & 3 closed
»DACK3W3pins 2 & 3 closed
 DACK1W3pins 1 & 2 closed
»DREQ3W4pins 1 & 2 closed
 DREQ1W4pins 2 & 3 closed
»Hard drive Interrupt is IRQ5W5pins 2 & 3 closed
 Hard drive Interrupt is IRQ2W5pins 1 & 2 closed
»I/O Port address is 320h-323hW7closed
 I/O Port address is 324h-327hW7open
DRIVE TYPES FOR THE "BXD06" BIOSDRIVE TYPE FOR THE "BXD07" BIOS
 Form Cap./Hds./Cyls./WPCForm Cap./Hds./Cyls./WPC
035MB / 8 / 512 / none20MB / 4 / 612 / none
110MB / 2 / 615 / none32MB / 5 / 733 / none
220MB / 4 / 612 / 12820MB / 4 / 612 / 128
310MB / 4 / 306 / none10MB / 4 / 306 / none
45MB / 2 / 306 / none43MB / 5 / 987 / none
526MB / 8 / 375 / none60MB / 7 / 987 / none
620MB / 8 / 306 / none20MB / 8 / 306 / none
7Reserved for non-standardReserved for non-standard
815MB / 6 / 306 / none42MB / 5 / 977 / none
927MB / 6 / 512 / none42MB / 6 / 820 / none
A10MB / 2 / 612 / none10MB / 2 / 612 / none
B22MB / 4 / 640 / none62MB / 7 / 1024 / none
C18MB / 3 / 697 / none71MB / 8 / 1024 / none
D30MB / 5 / 697 / none80MB / 9 / 1024 / none
E33MB / 6 / 640 / none33MB / 6 / 640 / none
FSpecial SettingSpecial Setting
Note: Drive types "9" through "F" are only available with the 16K BIOS.
